Architecture in 3D and AR: Sharing Building Models, Plans, and Sections

· 6 min read · AcademicAR Team

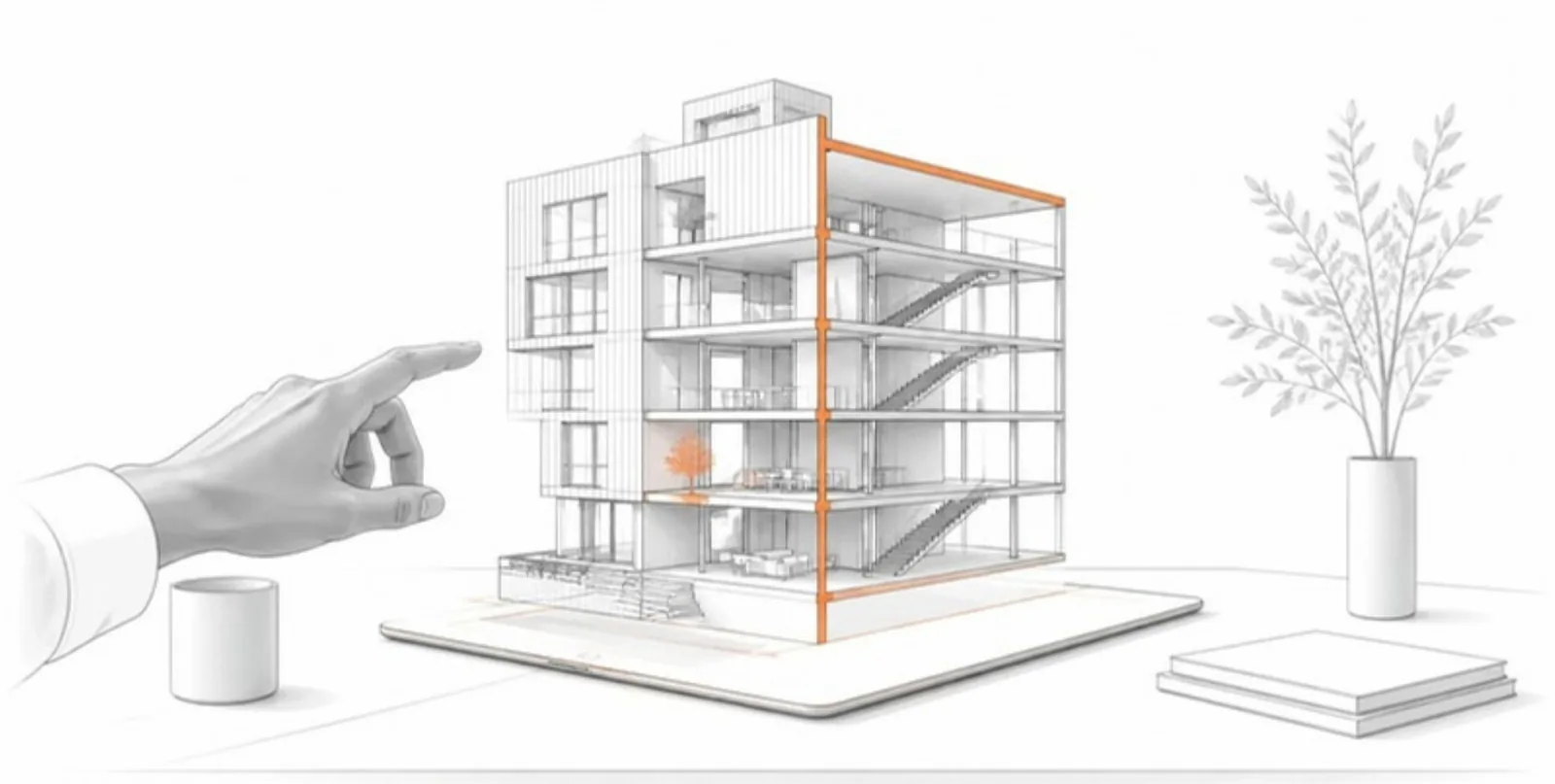

A building model cut open by a section plane, placed in AR on a table

Architecture has always been communicated through drawings that are cuts through a 3D idea: plans, sections, elevations. Digital models made the 3D idea explicit, yet most still reach their audience as rendered images. Interactive 3D lets the reader walk around — and through — the building themselves.

Getting the model out of your design tool

Most architecture tools export at least one format AcademicAR accepts:

  • Rhino, SketchUp, Blender, 3ds Max: export GLB/glTF, FBX, or OBJ.
  • Revit and ArchiCAD: export FBX or OBJ (directly or via a plug-in); see OBJ and FBX to GLB for what happens on upload.
  • Photogrammetry and laser-scan meshes of existing buildings and heritage sites: export OBJ or GLB with textures.
  • Fabrication-oriented models from CAD tools: STEP.

Keep it light: simplify furniture and entourage, merge tiny details, and check the units — a model in centimetres shown as metres will look a hundred times too big in AR. Models can be rescaled after upload.

A building exploded into systems

Layers as building systems

When a model has multiple named parts, each becomes a layer. Organise your export by building system — structure, envelope, floors, circulation, services, landscape — and readers can switch them on and off, fade the façade to reveal the structure, or recolour systems to match your diagrams.

Live plans and sections

The section plane is a natural fit for architecture. Cut horizontally for a live plan, vertically for a live section, and slide the plane to move through the building floor by floor. The 2D slice view shows the cut as a flat drawing with a scale bar, and the snapping measure reads wall thicknesses and room widths directly on the section. More in our post on section planes and slice views.

A horizontal cut gives a live plan and a vertical cut gives a live section of a building model A horizontal plane gives a live plan, a vertical plane a live section, with a scale bar and a snapping measure.

Saved views and tours for reviews

Save up to 12 scenes — each with its own camera, visible layers, colours, and section — and play them as a tour. A design review, a studio jury, or a heritage-documentation walkthrough becomes a guided sequence anyone can open from a link or a QR code (see scenes and tours).

A pavilion placed in AR on a table

AR on site and on the table

On a phone, the model can be placed in AR: a massing model on the review table, a reconstructed heritage element next to its ruins, a pavilion at its real scale in the courtyard where it will stand.

Uses in research and teaching

  • Heritage and conservation: publish scanned buildings and fragments with sections that reveal construction layers (see also AR for archaeology).
  • Design research: attach the actual model to a paper on form, structure, or performance.
  • Studio teaching: students submit an interactive model with their boards; the jury scans a QR code on the poster.
  • Building technology courses: explode a façade or a structural system layer by layer.

Frequently asked questions

How do I view a Revit or SketchUp model in AR?

Export it as GLB, FBX, or OBJ (Revit via FBX or OBJ), upload it, and open the viewer link or QR code on a phone. Tap View in AR to place the model on the table or on site.

Why is my building the wrong size in AR?

Usually a unit mismatch: a model in centimetres read as metres appears a hundred times too big. Check the units before export; models can also be rescaled after upload.

Can I get a floor plan from the 3D model?

Yes. A horizontal section plane gives a live plan and a vertical one a live section. The 2D slice view shows the cut as a flat drawing with a scale bar.
